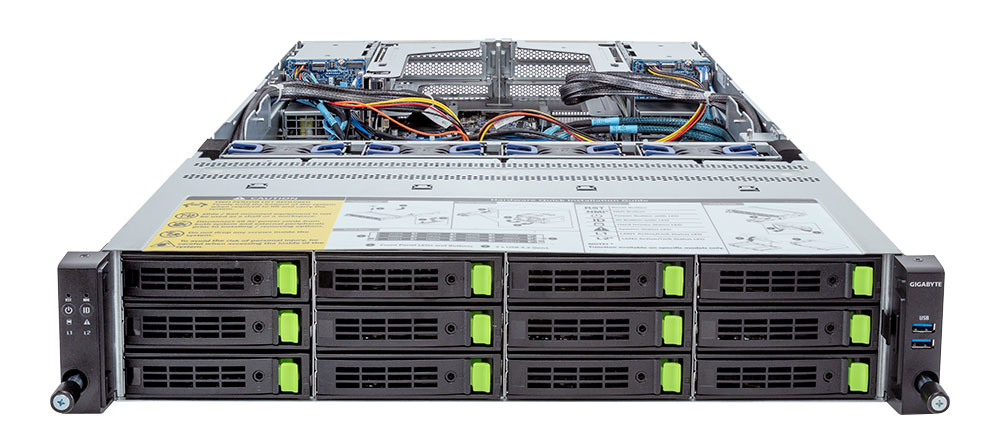

R283-Z90_rev.AAD1
Dimensions (WxHxD, mm)
2U
438 x 87 x 815
Motherboard
MZ93-FS0
CPU
AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128-core, 256 threads per processor
cTDP up to 300W at ambient 35°C
Supports EPYC 9654 cTDP 400W.
*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
2 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
LAN
Rear side:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
12 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1, SATA from CPU_0)
Rear side:
4 x 2.5" SATA/SAS hot-swappable bays, from CPU_0
SAS card is required for SAS devices support
SAS
Depends on SAS Add-on card
RAID
N/A
Expansion Slots
Riser Card CRS101T:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
Riser Card CRS101Q:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1
Riser Card CRS202M:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 slot disabled
1 x OCP 3.0 slot disabled, from CPU_0
1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards
Internal I/O
3 x M.2 slots
1 x TPM header
2 x OCP 3.0 slots
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED
Backplane I/O
Speed and bandwidth:
Front side CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Rear side CBP2022: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W (240V) 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input:
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-Z90
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR283Z90DR000AAD1*
- Motherboard: 9MZ93FS0UR-000
- Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-15320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C5: 9CBP20C5NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101T: 9CRS101TNR-00
- Riser card - CRS101Q: 9CRS101QNR-00
- Riser card - CRS202M: 9CRS202MNR-00
- G-SC Module: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-216008-L0S
