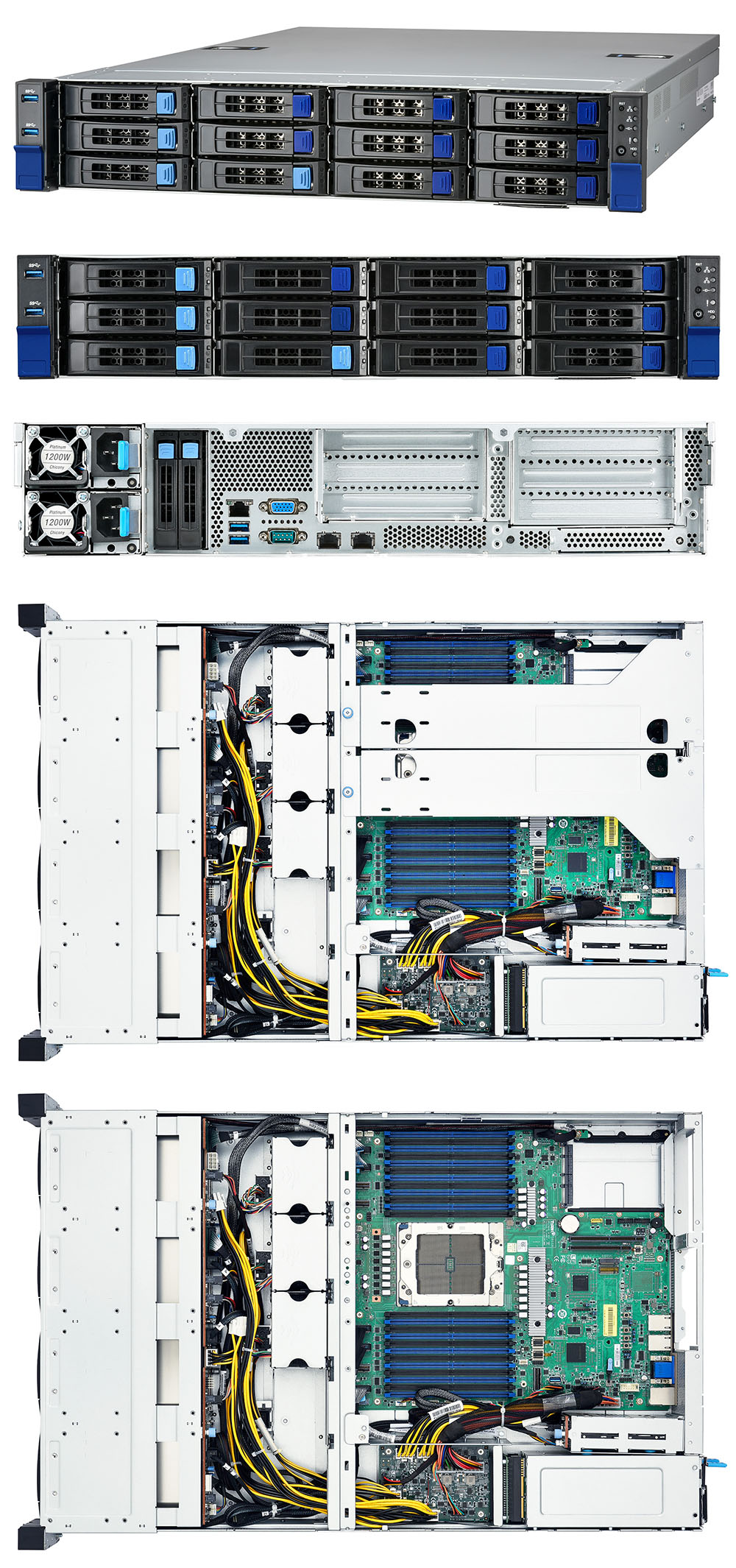

Chassis Model

TS70

Dimension (D x W x H)

27.56" x 17.26" x 3.42" (700 x 438.5 x 87mm)

Motherboard Name

S8056GME

Board Dimension

Prop. 14.18" x 12.16" (360.2 x 308.8mm)

Front Panel

Buttons

(1) ID / (1) PWR w/ LED / (1) RST

LEDs

(1) HDD / (1) ID / (2) LAN / (1) System Event

I/O Ports

(2) USB 3.2 Gen.1 ports

External Drive Bay

Q'ty / Type

(2) 2.5" Hot-Swap NVMe HDD/SSDs / (12) 3.5"/2.5" Hot-Swap HDD/SSDs w/ (4) NVMe

Front Drive Bay Interface

(12) SATA 6Gb/s with (4) NVMe ports

Front HDD Backplane Support

NVMe / SATA 6Gb/s

Rear Drive Bay Interface

(2) NVMe

Rear HDD Backplane Support

NVMe

System Cooling Configuration

FAN

(3) hot-swap 8056 fans

Redundancy

Yes

Power Supply

Type

CRPS

Input Range

AC 100-127V/13A / AC 200-240V/7A

Frequency

50-60 Hz

Output Watts

1,000 Watts (100-127V AC input) / 1,200Watts (200-240V AC input)

Efficiency

80 plus Platinum

Redundancy

1+1

Processor

Q'ty / Socket Type

(1) AMD Socket SP5

Supported CPU Series

(1) AMD EPYC™ 9004 Series Processor

Thermal Design Power Wattage

Max up to 400W* (cTDP)

Memory

Supported DIMM Qty

(24) DIMM slots

DIMM Type / Speed

RDIMM DDR5 4800 MHz (1DPC) / 4000MHz (2DPC) / 3DS RDIMM DDR5 4000MHz (2DPC)

Capacity

Up to 3,072GB RDIMM/3DS RDIMM DDR5 4800/4000 memory

Memory channel

12 Channels per CPU

Memory voltage

1.1V

Expansion Slots

PCIe

(1) PCIe Gen.5 x8 slot / (2) PCIe Gen.5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5)

(1) M7136T70-R24-2F riser card for for (2) FH/HL PCIe 5.0 x16 slots / (1) M7136T70-L28-1F riser card for for (1) FH/HL PCIe 5.0 x8 slot

Others

(1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot

LAN

Q'ty / Port

(1) GbE dedicated for IPMI

PHY

Realtek RTL8211F

Storage SATA

Connector

(2) SFF-TA-1016

Controller

Direct from AMD EPYC CPU

Speed

6Gb/s

RAID

N/A

Storage NVMe

Connector (M.2)

(2) 22110/2280 (by PCIe Gen.4 interface)

Connector (U.2)

(3) SFF-TA-1016 (MCIO 8x) for (6) front NVMe

Graphic

Connector type

D-Sub 15-pin

Resolution

Up to 1920x1200

Chipset

Aspeed AST2600

I/O Ports

USB

(1) USB3.2 Gen.1 conn. (Type-A) / (1) USB3.2 Gen.1 header / (2) USB3.2 Gen.1 ports (@ front) / (2) USB3.2 Gen.1 ports (@ rear)

COM

(1) DB-9 COM port

VGA

(1) D-Sub 15-pin port

RJ-45

(1) GbE port dedicated for IPMI

Button

ID Button / Power Button / Reset Button

TPM (Optional)

TPM Support

Please refer to our TPM supported list.

Interface

SPI

System Monitoring

Chipset

Aspeed AST2600

Temperature

Monitors temperature for CPU & system environment

Voltage

Monitors voltage for CPU, memory, chipset & power supply

LED

Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator

Others

Watchdog timer support

Server Management

Onboard Chipset

Onboard Aspeed AST2600

AST2600 iKVM Feature

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

BIOS

Brand / ROM size

AMI / 64MB

Feature

Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI 6.2 / ACPI sleeping states S0, S5

Operating System

OS supported list

Please refer to our AVL support lists.

Regulation

FCC (SDoC)

Class A

CE (DoC)

Class A

CB/LVD

Yes

VCCI

Class A

C-Tick

Class A

Operating Environment

Operating Temp.

10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity 90

90%, non-condensing at 35° C

Package Contains

Barebone

(1) TS70-B8056 Barebone

Manual

(1) Quick Installation Guide

RoHS

RoHS 6/6 Compliant

Yes
