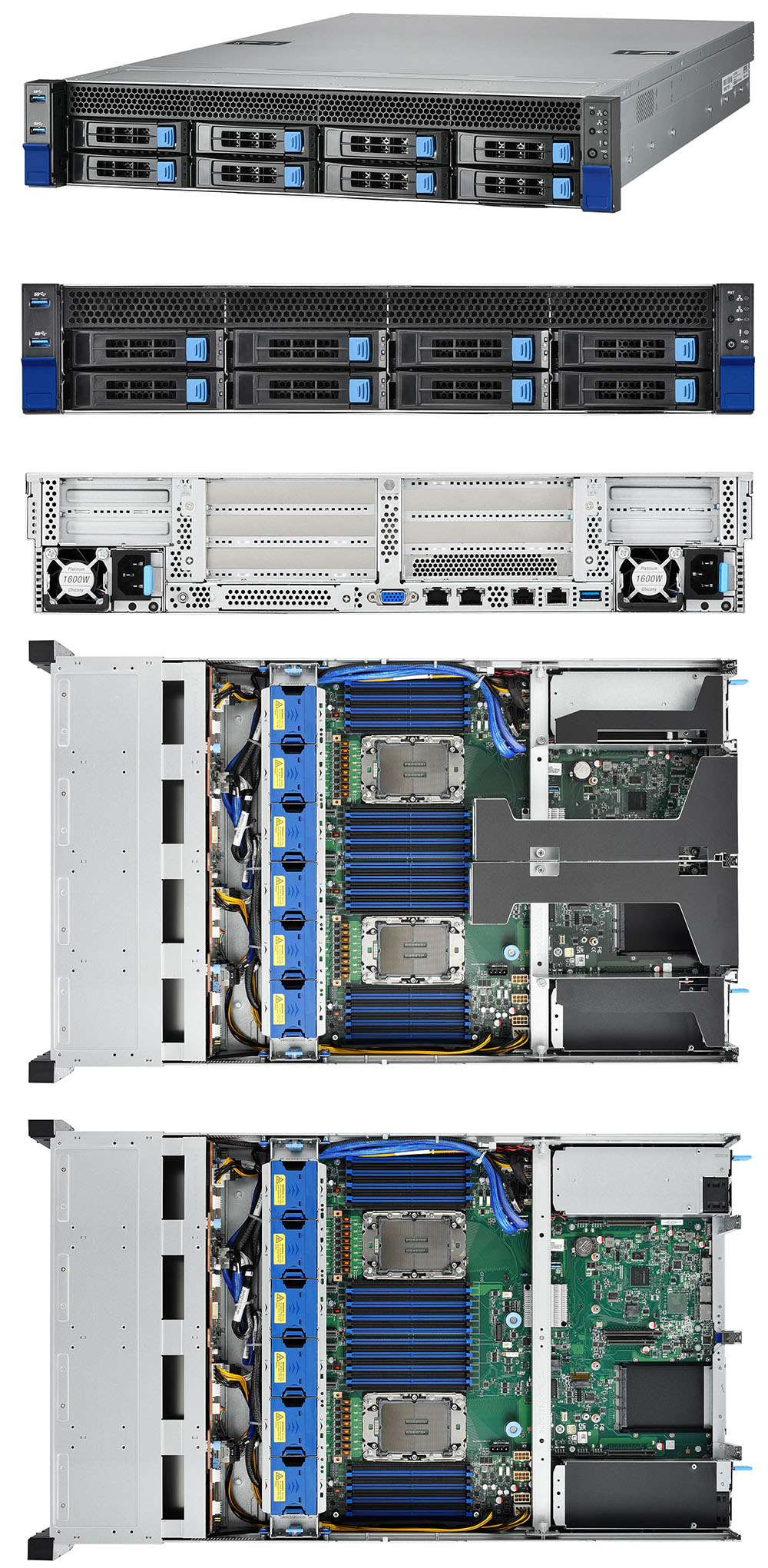

Chassis Model

TS75

Dimension (D x W x H)

29.56" x 17.26" x 3.43" (750.8 x 438.4 x 87mm)

Motherboard Name

S7132GM2NRE-2T #

Motherboard Notification

# The motherboard not sold separately

Gross Weight

33.1 kg (73 lbs)

Net weight

20.3 kg (44.8 lbs)

Board Dimension

Prop. 14.18" x 12.16" (360.2 x 308.8mm)

Front Panel

Buttons

(1) UID / (1) PWR w/ LED / (1) RST

LEDs

(1) UID / (2) LAN / (1) System Event

I/O Ports

(2) USB 3.2 Gen.1 ports

External Drive Bay

Q'ty / Type

(8) 3.5" Hot-Swap HDD/SSDs

Front Drive Bay Interface

(8) SATA 6Gb/s / SAS 12Gb/s / NVMe U.2

Front HDD Backplane Support

SAS 12Gb/s /SATA 6Gb/s /NVMe

Notification

The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required.

System Cooling Configuration

FAN

(6) 6cm fans

Power Supply

Type

CRPS

Input Range

AC 100-127V/13A / AC 200-240V/9.5A

Frequency

50-60 Hz

Output Watts

1,000 Watts (100-127V AC input) / 1,600 Watts (200-240V AC input)

Efficiency

80 plus Platinum

Redundancy

1+1

Processor

Q'ty / Socket Type

(2) LGA4677

Supported CPU Series

4th Gen. Intel Xeon Scalable Processors

Thermal Design Power Wattage

Max up to 350W (TDP)

Chipset

PCH

Intel C741

Memory

Supported DIMM Qty

(16)+(16) DIMM slots

DIMM Type / Speed

RDIMM DDR5 4800 MHz (1DPC) / 4400MHz (2DPC) / 3DS RDIMM DDR5 4400MHz (2DPC)

Capacity

Up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400 memory

Memory channel

8 Channels per CPU

Memory voltage

1.1V

Expansion Slots

PCIe

(1) PCIe Gen.5 x4 slot / (4) PCIe Gen.5 x16 slots

Pre-installed TYAN Riser Card (PCIe Gen.5)

(1) M7132T75-L20-2F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 + (1) FH/HL PCIe 5.0 x4 slots / (1) M7132T75-L16-1F riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1L riser card for (1) HH/HL PCIe Gen.5 x 16 slot / (1) M7132T75-R16-1F riser card for (1) FH/10.5"L/DW PCIe 5.0 x16 slot

Others

(1) PCI-E Gen.5 x16 OCP 3.0 mezzanine slot

LAN

Q'ty / Port

(2) 10GbE ports + (1) GbE dedicated for IPMI

Controller

Intel X710-AT2

PHY

Realtek RTL8211F

Storage SATA

Connector

(10) SATA

Controller

Intel C741

Speed

6Gb/s

RAID

RAID 0/1/10/5 (Intel RSTe)

Storage NVMe

Connector (M.2)

(2) 22110/2280 (by PCIe Gen.4 interface)

Connector (U.2)

(4) SFF-TA-1016 (MCIO 8x) for (8) front NVMe

Graphic

Connector type

D-Sub 15-pin

Resolution

Up to 1920x1200

Chipset

Aspeed AST2600

I/O Ports

USB

(1) USB3.2 Gen.1 port (@ rear) / (2) USB3.2 Gen.1 ports (@ front)

COM

RJ45

VGA

(1) D-Sub 15-pin port

RJ-45

(2) 10 GbE ports + (1) dedicated GbE for IPMI

Button

ID Button / Power Button / Reset Button

TPM (Optional)

TPM Support

Please refer to our TPM supported list.

Interface

SPI

System Monitoring

Chipset

Aspeed AST2600

Temperature

Monitors temperature for CPU & system environment

Voltage

Monitors voltage for CPU, memory, chipset & power supply

LED

Over temperature warning indicator / Fan & PSU fail LED indicator / Over voltage warning indicator

Others

Watchdog timer support

Server Management

Onboard Chipset

Onboard Aspeed AST2600

AST2600 iKVM Feature

24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub

AST2600 IPMI Feature

IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface

BIOS

Brand / ROM size

AMI / 64MB

Feature

Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.3/PnP/Wake on LAN / ACPI sleeping states S0, S5

Regulation

FCC (SDoC)

Class A

CE (DoC)

Class A

CB/LVD

Yes

VCCI

Class A

C-Tick

Class A

Operating Environment

Operating Temp.

10° C ~ 35° C (50° F~ 95° F)

Non-operating Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

In/Non-operating Humidity 90

90%, non-condensing at 35° C

Package Contains

Barebone

(1) TS75-B7132 Barebone

Manual

(1) Quick Installation Guide

RoHS

RoHS 6/6 Compliant

Yes
